POWER PLANT EXPLOSION PROOFING

GAS TRAIN WEATHERIZATION / MUNICIPAL POWER INFRASTRUCTURE

Weather-protection enclosure design for natural gas train infrastructure at two municipal power generation plants — engineered to prevent freeze-up in subzero wind chill while staying under the code threshold that would have forced a hazardous-location reclassification.

Architectural focus:

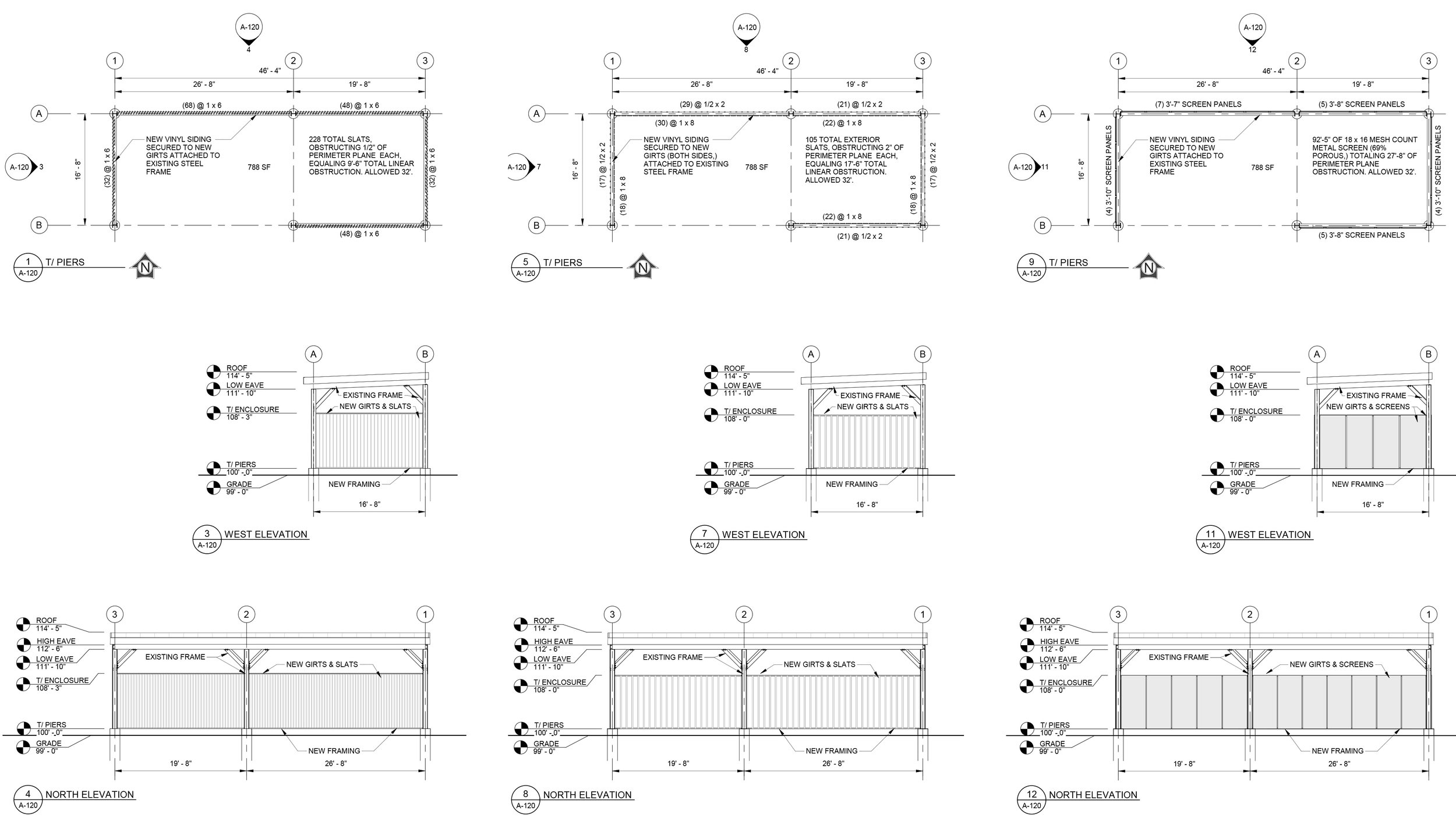

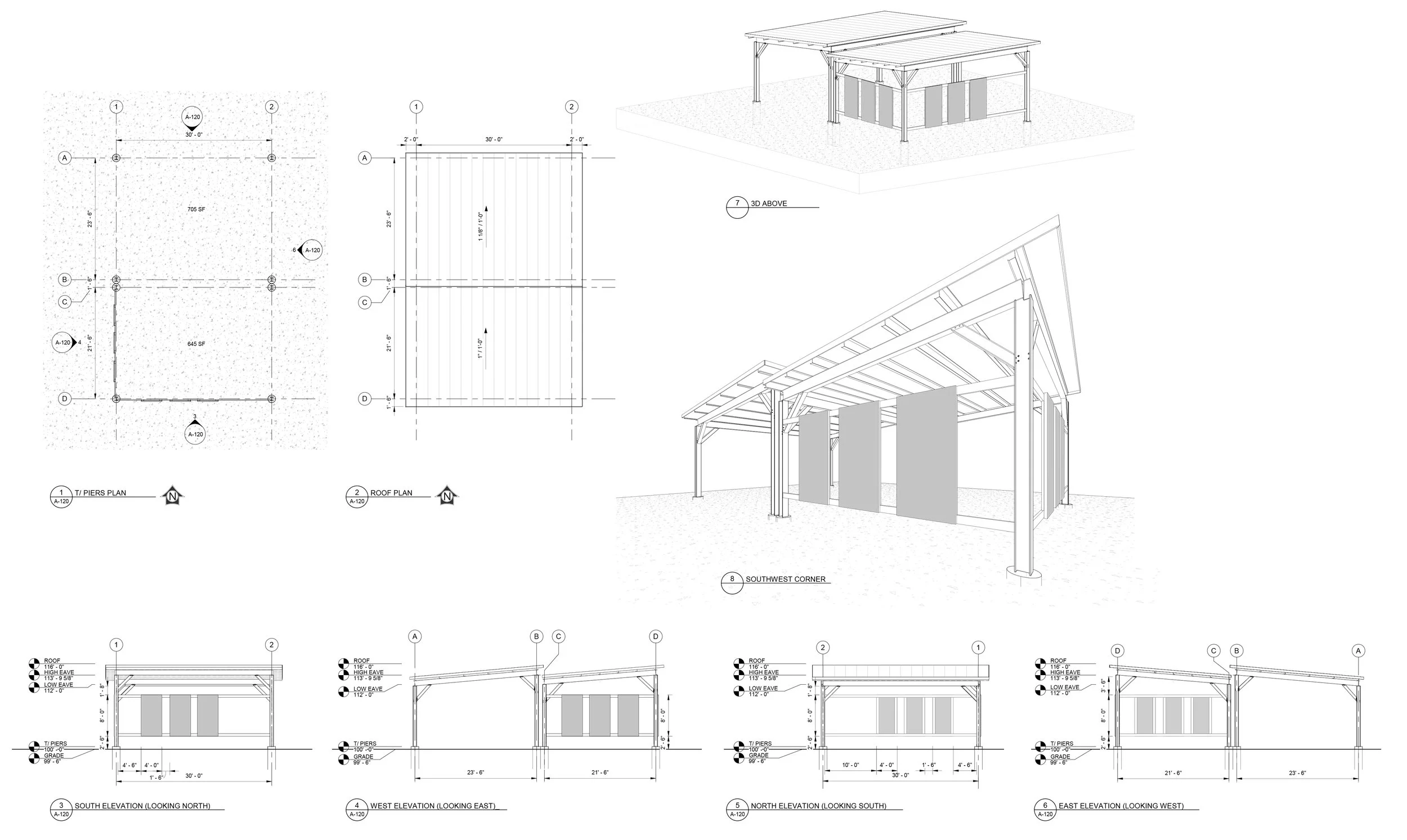

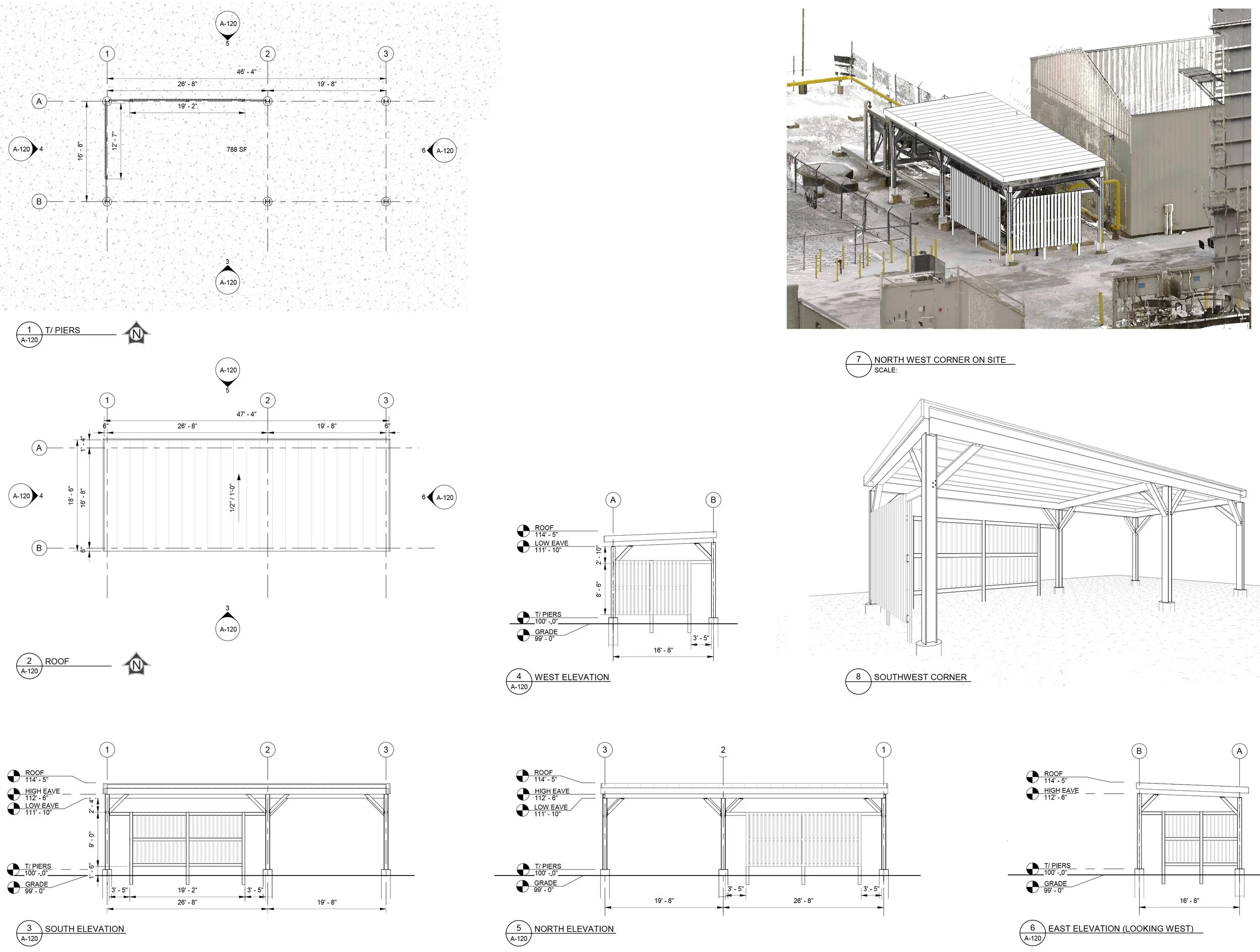

• IFC 414.6 obstruction-limit design. Natural gas (methane) is lighter than air and dissipates upward; over-enclosing the gas trains traps gas and creates an explosion hazard, while under-enclosing leaves the lines exposed to freeze. Enclosure designed to IFC 414.6.1.1, which permits wall obstruction of no more than 25% of the structure’s perimeter. On a 105’-8” perimeter, that allowed roughly 26 feet of enclosure — the design delivered 24 feet, maximizing weather protection while preserving natural ventilation.

• C1D2 classification preservation. Maintaining natural ventilation under the IFC obstruction limit kept the space within its Class 1 Division 2 classification. Crossing that threshold would have triggered explosion-proof (XP) equipment requirements and a far costlier C1D1 upgrade across the site.

• Freeze-prevention enclosure strategy. Fixed framing and panel layout designed to hold operational temperatures through wind-chill severity, protecting aging gas train lines from freeze-up and the associated pressure-buildup and rupture risk.

• Coordination for XP equipment contingency. Documentation accounted for potential future integration of explosion-proof heaters and gas-detection sensors, with framing and access planned for that contingency

.• Point Cloud Scan-to-BIM. Existing-conditions capture of both plants via LiDAR point cloud, reconciled into Revit for precise enclosure and connection documentation against live operating infrastructure and maintenance-access constraints.

Documented by Christian Hemrick while at Matrix Technologies Inc.
