HAZMAT STEEL PRODUCTION

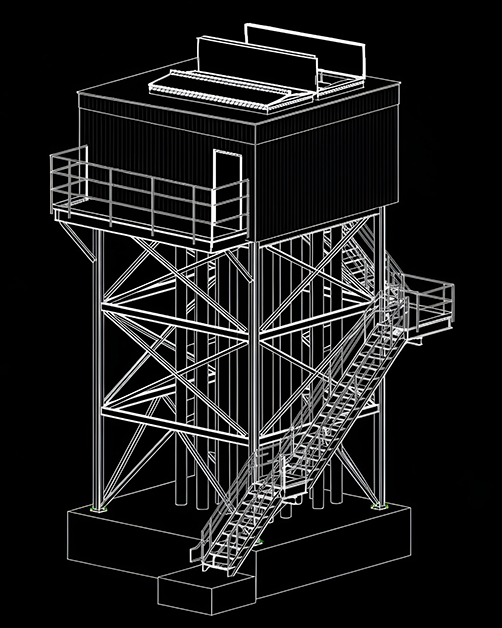

STEEL TUBE REFORMER / HIGH-TEMPERATURE CATALYST ENCLOSURE

A 40-foot elevated process enclosure housing a 30-foot steel tube reformer — engineered to manage extreme process heat and toxic chemical exposure while cutting catalyst-cycle production time in half.

Architectural focus:

• Motorized bi-fold roof-hatch redesign. Oversized pneumatic bi-fold roof hatches engineered to withstand impact from crane-suspended reformer tubes swaying on cable during insertion. Sourced against client budget and maintenance requirements with supplier reps. The redesign replaced the prior method of crane-hoisting the entire enclosure roof each cycle — cutting per-cycle production time in half.

• Snow-load roof geometry. Newly sloped roof designed to minimize snow load while preserving minimum walkable maintenance access between and around the hatch openings.

• Toxic chemical handling. Exterior structural balcony with a dedicated enclosure door for staging and navigating large drums of toxic process fluids into position. Designed to support the HazMat-suited pre- and post-cycle washing and prepping protocol required to prevent fluid contact and fume inhalation.

• Elevated structural integration. Enclosure suspended 40 feet above grade to isolate operators from extreme process heat, with roof flashing and snow-load detailing coordinated at all access points.

Designed and documented by Christian Hemrick while at Matrix Technologies Inc.
