POWER PLANT

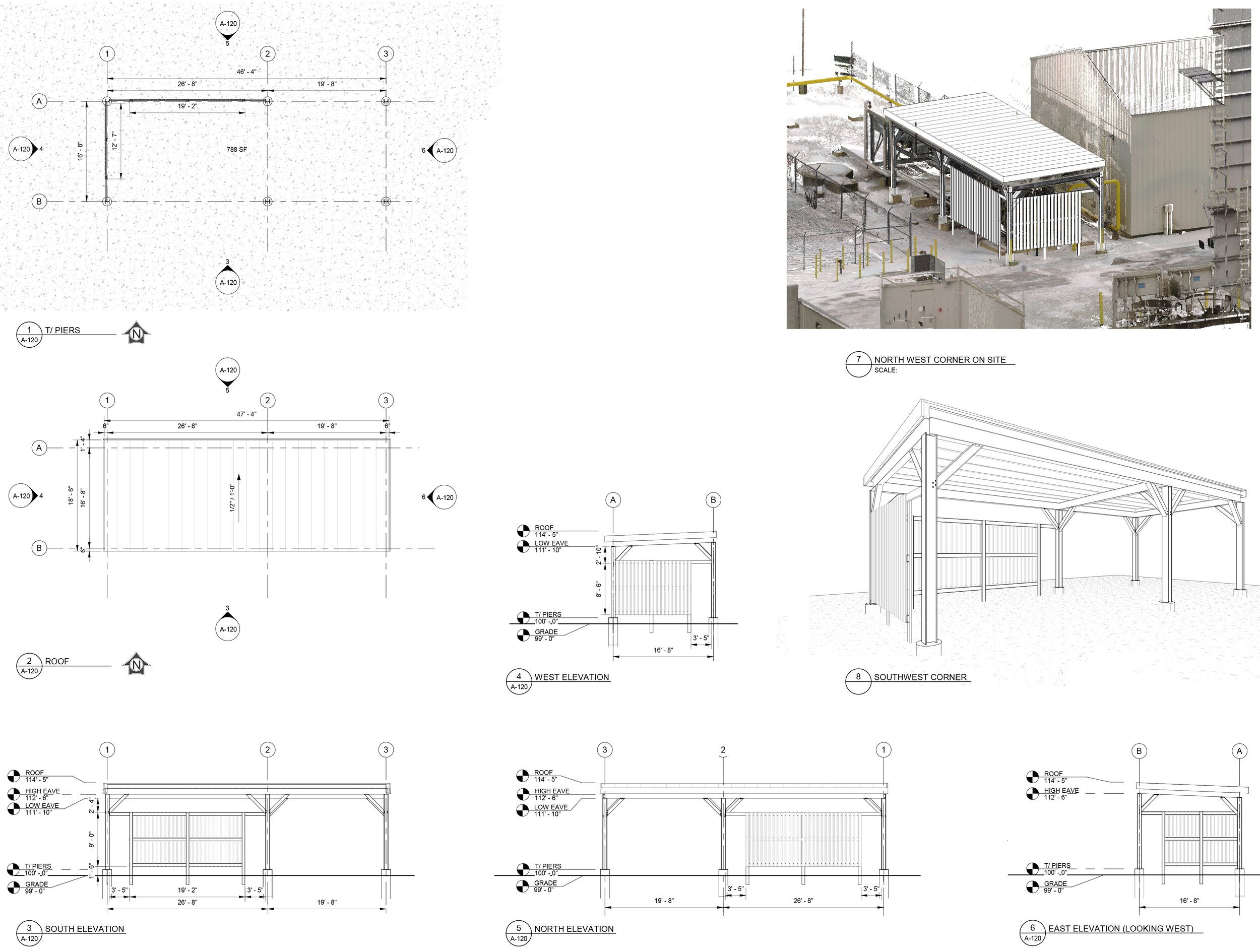

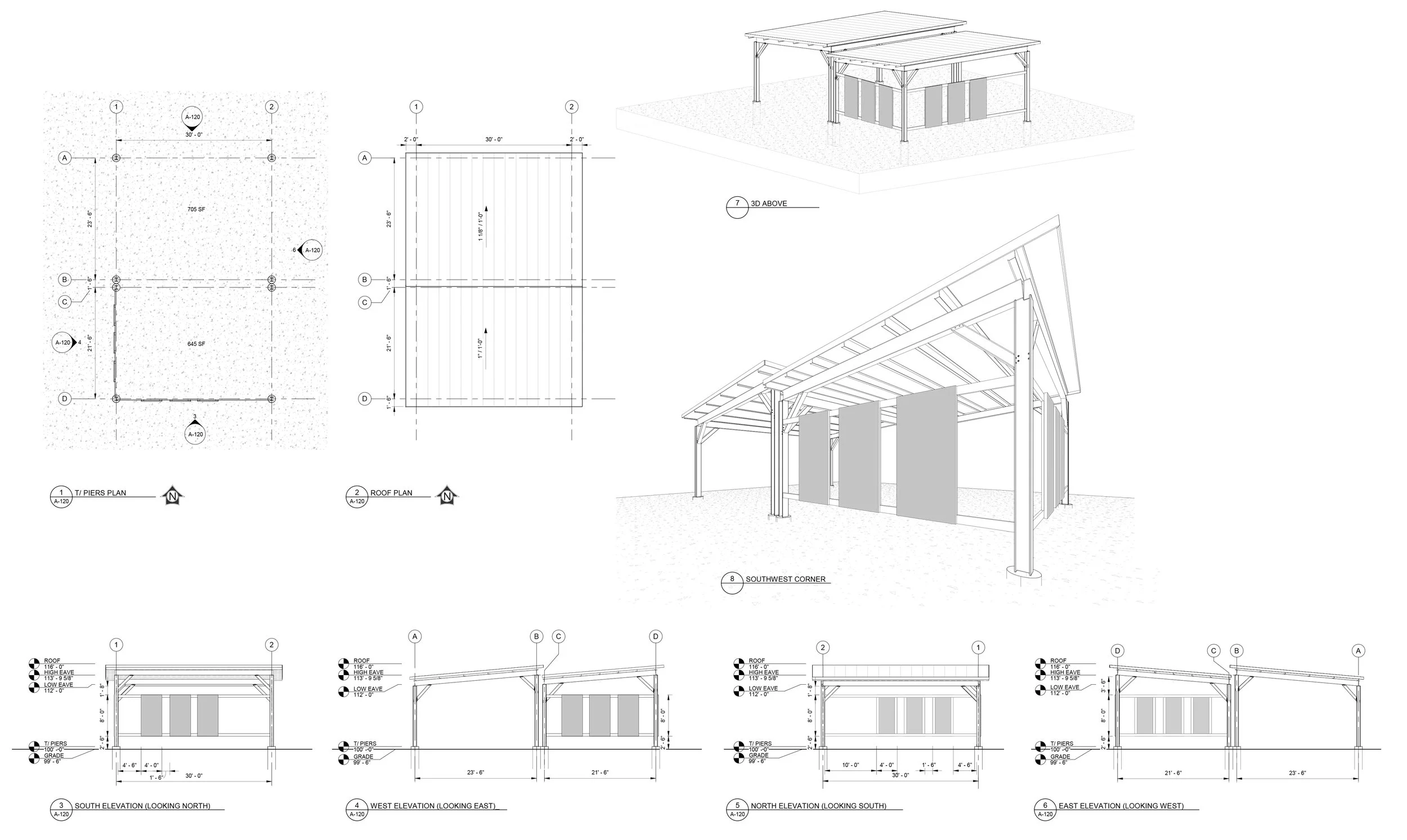

Gas Train Thermal Protection: Weather-shed enclosures for utility power gas train infrastructure. Designed fixed-framing and panel strategies to maintain operational temperatures during wind-chill severity, creating sub-zero conditions. Documentation focused on ventilation requirements, and integration with existing utility site constraints, and maintenance access. Explosion-proof (XP) heaters and gas-detection sensors were discussed for the potential need of further coordination, and keeping the classification C1D2. Research & documentation, Revit & Point Cloud, while with Matrix Technologies Inc.

Product: Natural Gas (Methane), Pipeline distribution quality. Lighter than air and will dissipate to atmosphere. Natural gas with too much air will not burn, and with insufficient air ventilation will explode. It’s stability is normal under typical storage conditions. When released, natural gas readily mixes with air, and depending on surrounding conditions can create an explosive hazard.

IFC 102.1 Construction and Design Provisions: Existing structures, facilities and conditions that, in the opinion of the fire code official, constitute a distinct hazard to life or property. iFC 102.2

Structures on the premises of and directly related to the operation of a generating plant defined as a major utility facilty, regulated by the power siting board, including the structures associated with generation, transmission, and distribution.

414.6 Outdoor Storage, Dispensing, and Use:

414.6.1.1 Walls. Walls shall not obstruct more than one side of the structure

Exception: Walls shall be permitted to obstruct portions of multiple sides of the structure, provided that the obstructed area is not greater than 25 percent of the structure's perimeter.

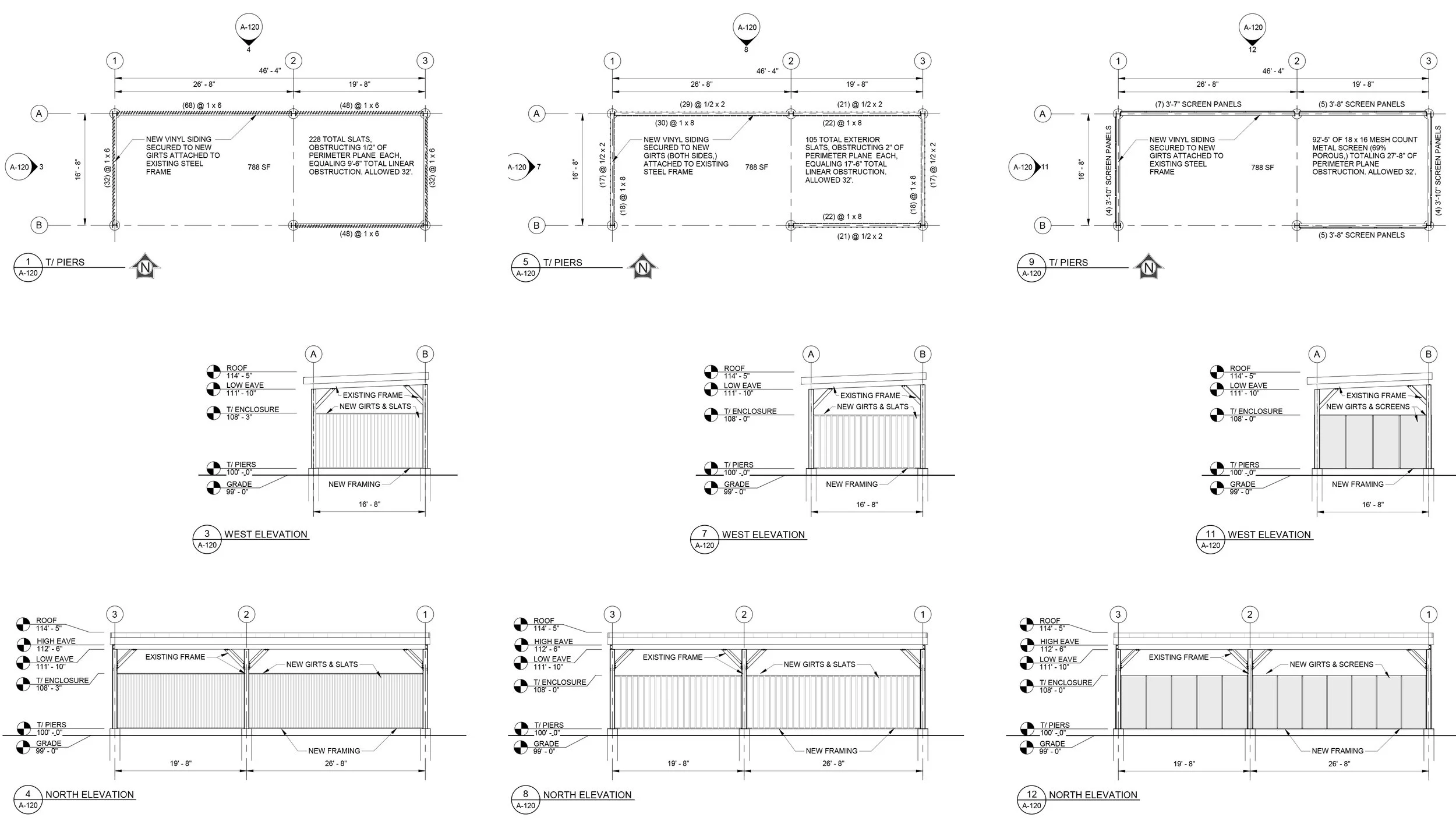

Enclosure Perimeter: 105'-8",@ 25% =~ 26' (now showing 24' enclosed)

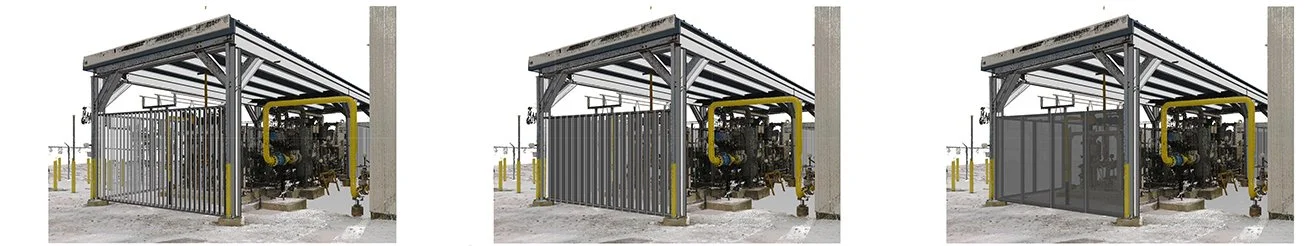

Options: Listed in order of magnitude from higher initial costs to lower initial costs:Roll-up doors, Metal siding, Vinyl siding, Scaffolding wrapped with Monarflex
